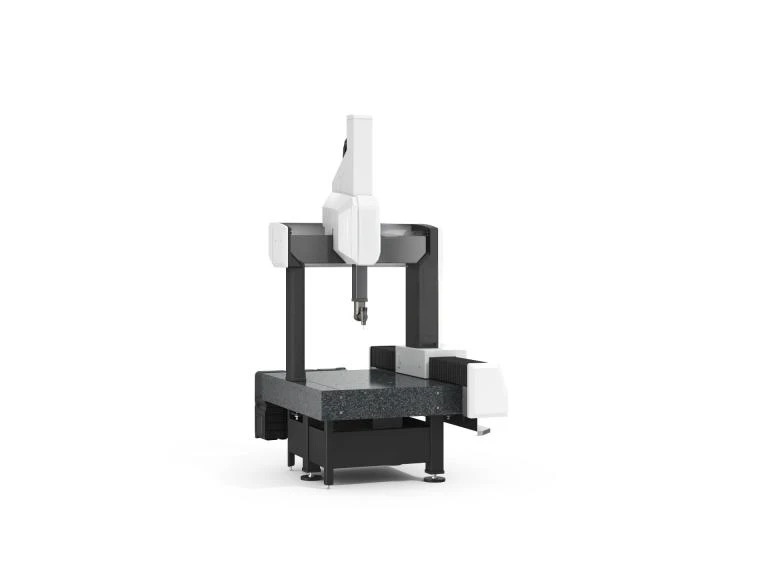

Fixed 3D CMM

Fixed 3D Coordinate Measuring Machines (CMMs) are high-precision, stationary metrology systems used for measuring the physical geometry of complex components with micrometer-level accuracy. These systems are typically housed in controlled environments such as quality labs or clean rooms and are equipped with advanced probing technologies—tactile touch probes, scanning probes, or optical sensors—to perform repeatable and highly accurate dimensional inspection.

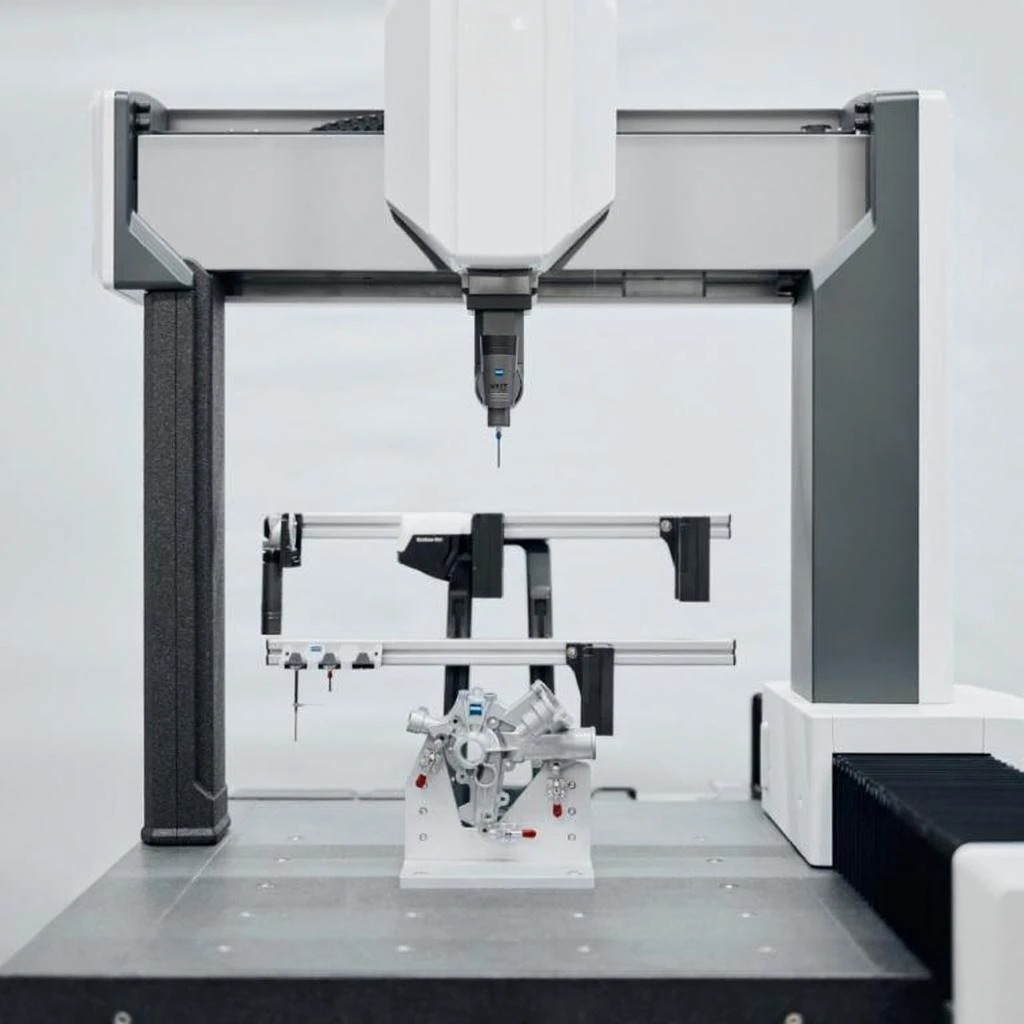

At Caliylark Technologies, our Fixed 3D CMMs are designed to meet the highest industry standards for accuracy, stability, and automation. With granite structures, air bearings, and bridge- or gantry-style configurations, these machines provide a rigid and thermally stable platform for consistent results, making them ideal for high-volume inspection and critical quality assurance tasks across industries.

Key Features:

Exceptional accuracy (as fine as 1 micron), ideal for critical dimensional tolerances
Available in various sizes for small precision parts to large industrial components
Multi-sensor capability with interchangeable probing systems (tactile, scanning, optical)
CAD-model-based inspection and real-time deviation analysis
Automated part programs for fast, repeatable inspection cycles
Robust construction for stability and long-term precision

Benefits:

Fixed 3D CMMs bring unmatched accuracy and repeatability to the manufacturing floor, particularly in industries where product quality, safety, and compliance are non-negotiable. By integrating these machines into your inspection workflow, you gain the ability to perform complex geometrical evaluations such as form, fit, profile, flatness, and alignment, along with advanced GD&T analysis.
